Up/Down Converters
The iCana Up/Down Converters are highly integrated silicon frequency-conversion ICs that support 5G phased-array applications. These UDCs are compatible with the iCana Beamforming ICs and they can be used in combination with their respective products such as ICAMB2430-A, providing a low-cost, high-performance 5G phased-array system.
| Part Number | Frequency Range [GHz] | Band | EVAL Board Availability |
|---|---|---|---|

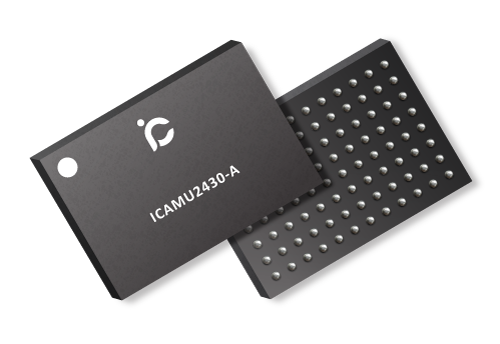

| ICAMU2430-A | 24 - 30 | n257, n258, n261 | Contact Us |
| ICAMU3743-A | 37.0 - 43.5 | n259, n260 | Contact Us |
Key Features
- Wide RF frequency range
- Direct conversion and heterodyne conversion in single SoC
- Complex IF operation (IF mode) with optional on-chip hybrid
- DC-offset compensation for the I/Q baseband
- Image rejection and I/Q imbalance optimization
- Accurate phase correction control
- Accurate gain correction control
- Direct conversion of differential baseband I/Q (baseband mode)
- Programmable baseband I/Q common-mode voltage
