Wi-Fi Front-End Modules

Part Number Frequency Range [GHz] Wi-Fi Standard Availability
ICAWF2101 2.4 - 2.5 Wi-Fi 7 / 8 Contact Us
ICAWF5101* 5.1 - 5.9 Wi-Fi 7 / 8 Contact Us
ICAWF6101* 5.9 - 7.1 Wi-Fi 7 / 8 Contact Us

*Coming Soon

Key Product Line Characteristics

  • For Wi-Fi 7 (802.11be) networking systems
  • Cover 2.4, 5 and 6 GHz bands

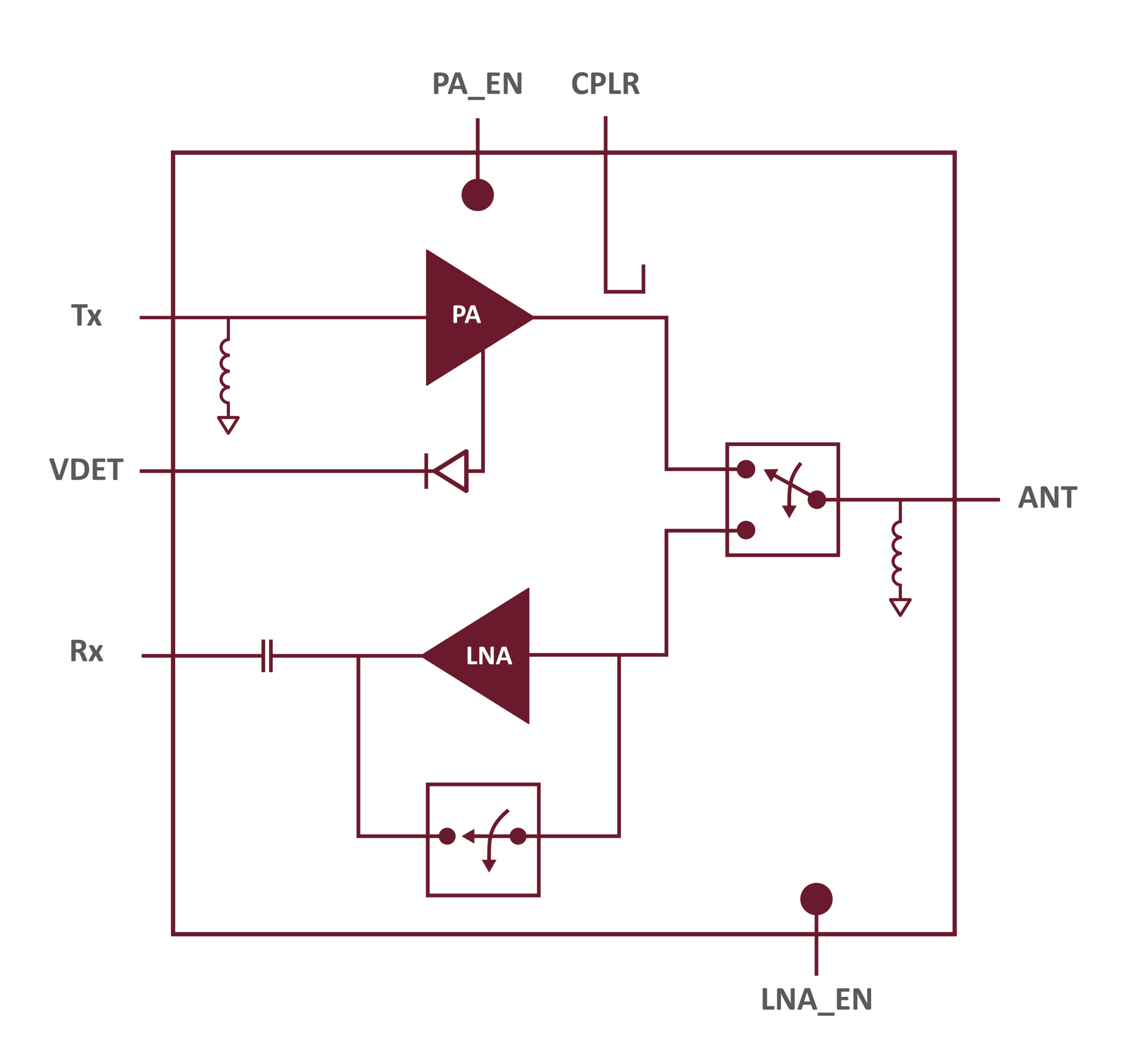

  • Highly integrated FEMs include high-performance PA, LNA with bypass, T/R switch, RF coupler and DC power detector
  • High output power and linearity
    • >15 dBm MCS13 EHT40/EHT160/EHT320, -47 dB DEVM
    • >18 dBm MCS11 EHT40/EHT160, -43 dB DEVM
    • >26 dBm MCS0 HT20, spectral mask compliant

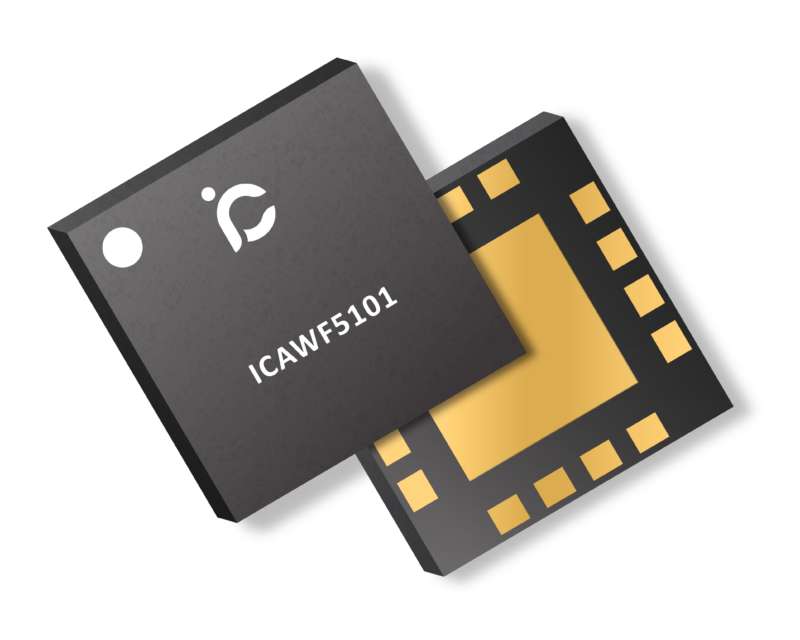

  • Small 16-pin 3 x 3 mm2 QFN package pin-to-pin compatible family
  • Optimized for 5V operation
